Ubiquiti UniFi USW-Pro-8-POE

€ 330,00 Excluding VAT

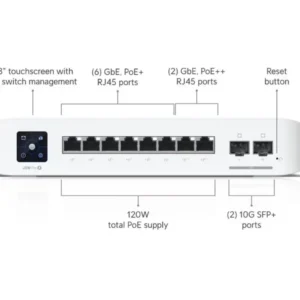

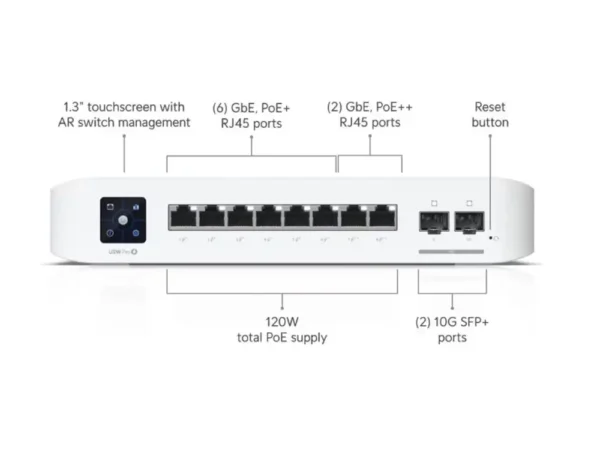

An 8-port, Layer 3 switch with PoE+ and PoE++ output.

(6) GbE PoE+ ports

(2) GbE PoE++ ports

(2) 10G SFP+ ports

120W total PoE availability

Category: Tags: ,
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps

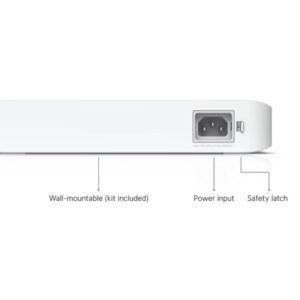

Power method Universal input, 100—240V AC, 2A Max.
Power supply AC/DC, internal
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display (1) 1.3″ touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
